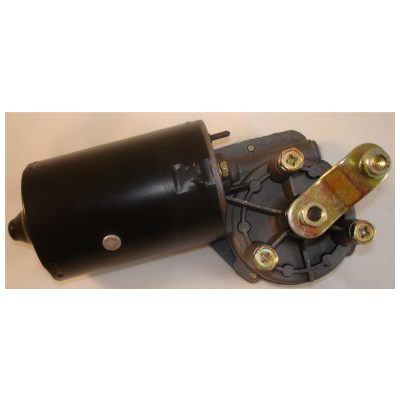

12vdc Gear Motor

Description

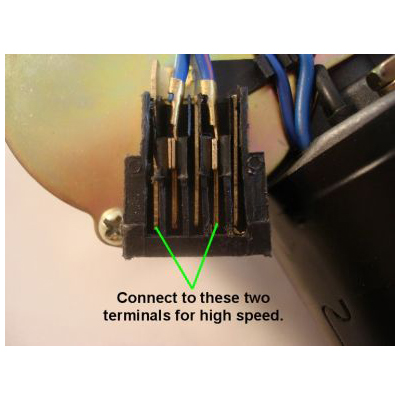

• 12 VDC has high and low speeds
• High Speed @ 12V: 53 r.p.m.
• Low Speed @ 12V: 38 r.p.m.
• High Speed @ 5V: 21 r.p.m.
• Low Speed @ 5V: 15 r.p.m.
• Working Torque – 3.98 foot pounds (5.4 N m)
• Static Torque – 13.27 foot pounds (18 N m)
• Full Load: 2000mA @ 12VDC, 1080mA @ 5VDC
• No Load: 1020mA @ 12VDC, 780mA @ 5VDC
